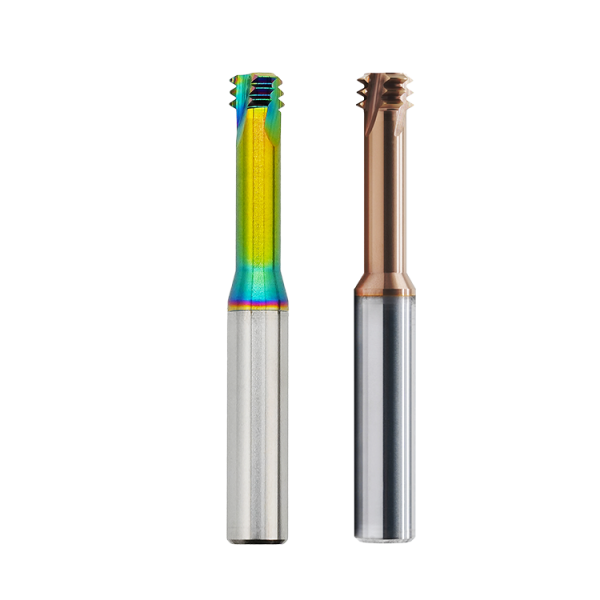

3 Muileann Deireannach Fiaclan ISO Metric

Dùthchasach	Tungsten stàilinn / carbide
Co-dhiù an cuirear taic ri gnàthachadh	THA
OEM & ODM	OK
Freagarrach airson	almain no stàilinn

Muileann crìochnachaidh fiaclan ISO metric 3 airson alùmanum no stàilinn Clàr sònrachadh:

Thread	phàirce	meud				Flute chip	Toll bun air a mholadh
Flùraichean àbhaisteach ISO	mm	Shankr(mm)	Trast-thomhas a' chnatain mhòir (mm)	Fad an fhlùt(mm)	Fad iomlan (mm)	Z	mm
M1＊0. 25	0. 25	4	0.7	2. 8	50	3	0 .75
M1. 2＊0. 25	0. 25	4	0. 9	3.2	50	3	0. 95
M1. 4＊0. 3	0.3	4	1. 05	3. 4	50	3	1.1
M1. 6＊0. 35	0. 35	4	1.2	3.5	50	3	1. 25
M1. 8＊ PO. 35	0. 35	4	1 .4	3. 8	50	3	1 .45
M2＊0. 4	0.4	4	1. 55	4. 3	50	3	1.6
M2. 5＊0. 45	0. 45	4	1. 95	5.3	50	3	2. 05
M3＊0. 5	0. 5	4	2. 4	6.6	50	3	2.5
M3. 5＊0. 6	0.6	4	2. 75	7. 6	50	3	2.9
M4＊0. 7	0. 7	4	3. 15	8. 6	50	3	3.3
M5＊0. 8	0. 8	4	3. 9	10. 5	50	3	4.2
M6＊1. 0	1	6	4.8	14	57	3	5
M8＊0. 75	0. 75	6	5. 95	16.6	50	3	7. 25
M8＊1. 25	1. 25	6	5. 95	16. 5	57	3	6.8
M10＊1. 5	1.5	8	7. 95	22	60	4	8.5
M12＊1. 75	1. 75	10	9. 9	27	70	4	10. 3
M14＊1 . 5 - M16＊1 . 5	1.5	12	11. 9	30	75	4	12. 5 — 14. 5
M14＊2 -M16＊2	2	12	11.6	33	75	4	12 - 14
M20＊2. 5	2. 5	14	13. 9	41. 3	90	5	17. 5
M24＊3. 0	3	16	15. 9	50		5	21
