HRC56 ° / 62 ° Muileann Flat End Micro-trast-thomhas

Dùthchasach	Tungsten stàilinn / carbide
Flùb	2
Co-dhiù an cuirear taic ri gnàthachadh	THA
Hrc	56 ° / 62 °
OEM & ODM	OK
Freagarrach airson	aluminium

HRC56 ° / 62 ° meanbh-trast-thomhas Muileann deireadh còmhnard airson stàilinn Clàr sònrachadh:

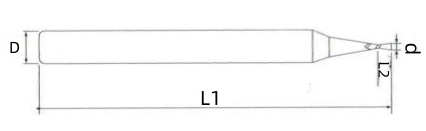

	d	L2	D	L1
Sònrachaidhean	Trast-thomhas a' chnatain mhòir (mm)	Fad an fhlùt(mm)	Trast-thomhas Shank (mm)	Fad iomlan (mm)
D0.1	0.1	0.2	4	50
D0.15	0.15	0.3	4	50
D0.2	0.2	0.4	4	50
D0.25	0.25	0.5	4	50
D0.3	0.3	0.6	4	50
D0.35	0.35	0.7	4	50
D0.4	0.4	0.8	4	50
D0.45	0.45	0.9	4	50
D0.5	0.5	1	4	50
D0.55	0.55	1.1	4	50
D0.6	0.6	1.2	4	50
D0.65	0.65	1.3	4	50
D0.7	0.7	1.4	4	50
D0.75	0.75	1.5	4	50
D0.8	0.8	1.6	4	50
D0.85	0.85	1.7	4	50
D0.9	0.9	1.8	4	50
D0.95	0.95	1.9	4	50
