Dùthchasach | Tungsten stàilinn / carbide |
Co-dhiù an cuirear taic ri gnàthachadh | THA |
Hrc | 56 ° |
Flùb | 2 |
OEM & ODM | OK |
Freagarrach airson | stàilinn |

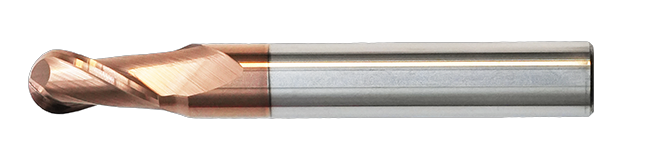

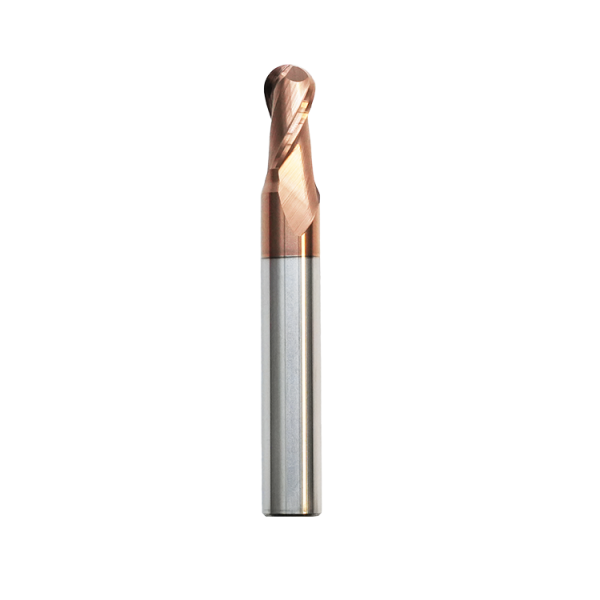

Is e prìomh fheartan cruinneas radius sròn àrd airson obair bleith grinn agus còmhdach seilbh airson sruthadh chip sàr-mhath gus cinneasachd àrd a chumail eadhon aig astaran dealgan ìosal
R | L2 | d2 | L1 | |
Sònrachaidhean | Radius(mm) | Fad an fhlùt(mm) | Trast-thomhas Shank (mm) | Fad iomlan (mm) |
R0.55*2.2D4*50L | 0.55 | 2.2 | 4 | 50 |
R0.6*2.4*D4*50L | 0.6 | 2.4 | 4 | 50 |
R0.65*2.6*D4*50L | 0.65 | 2.6 | 4 | 50 |
R0.7*2.8*D4*50L | 0.7 | 2.8 | 4 | 50 |
R0.8*3.2*D4*50L | 0.8 | 3.2 | 4 | 50 |
R0.85*3.4*D4*50L | 0.85 | 3.4 | 4 | 50 |
R0.9*3.6*D4*50L | 0.9 | 3.6 | 4 | 50 |
R0.95*3.8*D4*50L | 0.95 | 3.8 | 4 | 50 |
R1.05*4.2*D4*50L | 10.5 | 42 | 4 | 50 |
R1.1*4.4*D4*50L | 1.1 | 4.4 | 4 | 50 |
R1.15*4.6*D4*50L | 1.15 | 4.6 | 4 | 50 |
R1.2*4.8*D4*50L | 1.2 | 4.8 | 4 | 50 |
R1.3*5.2*D4*50L | 1.3 | 5.2 | 4 | 50 |
R1.35*5.4*D4*50L | 1.35 | 5.4 | 4 | 50 |
R1.4*5.6*D4*50L | 1.4 | 5.6 | 4 | 50 |
R1.45*5.8*D4*50L | 1.45 | 5.8 | 4 | 50 |
R1.55*6.2*D4*50L | 1.55 | 6.2 | 4 | 50 |
R1.6*6.4*D4*50L | 1.6 | 6.4 | 4 | 50 |
R1.65*6.6*D4*50L | 1.65 | 6.6 | 4 | 50 |
R1.7*6.8*D4*50L | 1.7 | 6.8 | 4 | 50 |
R1.8*7.2*D4*50L | 1.8 | 7.2 | 4 | 50 |
R1.85*7.4*D4*50L | 1.85 | 7.4 | 4 | 50 |
R1.9*7.6*D4*50L | 1.9 | 7.6 | 4 | 50 |
R1.95*7.8*D4*50L | 1.95 | 7.8 | 4 | 50 |
R2.25*9*D6*50L | 2.25 | 9 | 6 | 50 |
R2.75*11*D6*50L | 2.75 | 11 | 6 | 50 |
R3.25*13*D8*60L | 3.25 | 13 | 8 | 60 |
R3.5*14*D8*60L | 3.5 | 14 | 8 | 60 |
R3.75*15*D8*60L | 3.75 | 15 | 8 | 60 |
R4.25*17*D10*75L | 4.25 | 17 | 10 | 75 |
R4.5*18*D10*75L | 4.5 | 18 | 10 | 75 |
R4.75*19*D10*75L | 4.75 | 19 | 10 | 75 |
R5.25*21*D12*75L | 5.25 | 21 | 12 | 75 |
R5.5*22*D12*75L | 5.5 | 22 | 12 | 75 |
R5.75*23*D12*75L | 5.75 | 23 | 12 | 75 |
R6.5*26*D14*100L | 6.5 | 26 | 14 | 100 |
R7.5*30*D16*100L | 7.5 | 30 | 16 | 100 |
